UserGuide:Displaying Desktop Reports

Using a Database as a Data Set

It is simple to use a database as the data set. You get the data you want into a RecordSet. Then you can pass the RecordSet to the report for it to use as its data set. Here is an example:

// teamRecordSet comes from a database
// SELECT statement
Dim ps As New PrinterSetup

Dim rpt As New TeamReport
If rpt.Run(teamRecordSet, ps) Then
If rpt.Document <> Nil Then
// Save the document for
// the Canvas to display
mReportDocument = rpt.Document
End If
End If

Using Text as a Data Set

To use anything else as a data set for a report, such a text file, you create a custom class that implements the Reports.DataSet interface. This interface specifies these methods: EOF As Boolean, Field(Integer) As Variant, Field(String) As Variant, NextRecord As Boolean, Run, Type(String) As Integer.

In these methods, you fetch the specific data you need from your actual data source (perhaps a text or XML file) and then return the result or do the expected action.

As a simple example, you can put the team names in a string array and then create a class to work with this array. You have to supply the code for each method in the interface.

To start with, create a class and call it TeamDataSet. Add the Reports.DataSet interface to it. Now add the array to contain the team names as a property of this class:

mTeams() As String

Create a Constructor method for the class and initialize the array there:

mTeams = Array("Seagulls", "Pigeons", "Crows")

Now you can begin implementing the interface methods. Start with NextRecord as it is the simplest. The NextRecord method is used to move the current array position, but before that can be implemented, another property to track the current array position is needed:

mArrayPosition As Integer

Now you can add the code to move the array position to the NextRecord method:

mArrayPosition = mArrayPosition + 1

EOF is next. EOF should return True when there is no more data in the array and False if there is still data.

If mArrayPosition > mTeams.Ubound Then
Return True
Else
Return False
End If

The above code checks if the current array position will be beyond the size of the array.

Moving along, the Type method is used to return the type of a specified field name. The array only has one field, the team name, so this method should check for the field name of “TeamName” and return its type, which is String. The type is indicated by the same integer value that specifies types when working with databases. For String, this is 5.

Note: You can find the complete table of data type values in the Database Operations topic.

If fieldName = "TeamName" Then
Return 5
Else
Return 0
End If

The two Field methods are used to get the value for the specified field in the current array position. One Field method uses an integer field position and the other uses the field name. There is only one field, so that simplifies things.

For Field(String) As Variant:

If name = "TeamName" Then
Return mTeams(mArrayPosition)
Else
Return ""
End If

The name is matched to what is specified for the DataField property for each ReportField in the Report Layout.

For Field(Integer) As Variant, have it use the previous code:

If idx = 0 Then
Return Field("TeamName")
Else
Return ""
End If

Lastly, you need to implement the Run method. This method is called to start the process of getting the data. It is also simple because all you need to do for this example is initialize the array position:

mArrayPosition = 0

With this class in place, you can now use it with the Report.Run method to populate the report with your data:

Dim teamData As New TeamDataSet
Dim ps As New PrinterSetup
Dim rpt As New TeamReport
If rpt.Run(teamData, ps) Then
If rpt.Document <> Nil Then
// Save the document for
// the Canvas to display
mReportDocument = rpt.Document
End If
End If

Displaying the Report

The Report Layout Editor lets you design your reports, but there is no way to preview them without running your app. Reports are generated as pictures, so you can display them by running the report with the data set and then displaying the generated report in a Canvas. Of course since the report is a Picture, you can do anything you can do with a Picture as well, such as save it directly to a FolderItem or database.

The above examples show how to run the report and have a comment that the document is saved for the Canvas to display. In order to display the report, the Document for the report is saved to a property of the window:

mReportDocument As Reports.RBReportDocument

The RBReportDocument class has a property to tell you how many pages are in the report (PageCount) and methods that are used to display, print and save the report (Page, Print, Save).

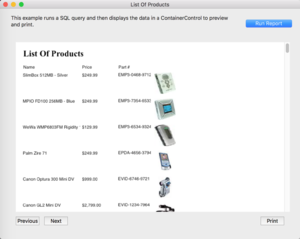

List Of Products Report

To display the report, you get one page at a time using the Page method (which returns a Picture containing the page of the report). You then use a Canvas to display the picture.

For example, this code in the Paint event of a Canvas displays page 1 of a report:

If mReportDocument <> Nil Then
g.DrawPicture(mReportDocument.Page(1), 0, 0)
End If

This code always only shows page 1 of the report. For an actual report preview, you usually display one page at a time and have Back/Next buttons to move between pages. The Back/Next buttons could alter a mCurrentDisplayPage property that you would use here in the Paint event in place of the “1” for the page number:

If mReportDocument <> Nil Then
g.DrawPicture(mReportDocument.Page(mCurrentDisplayPage), 0, 0)
End If

The PageCount property tells you how many pages there are in total.

Printing the Report

Printing a report works similarly to printing in general. You use PrinterSetup and OpenPrinter (or OpenPrinterDialog) to get a Graphics object. You then call the Print method of the Report Document to print it:

// teamRecordSet comes from a database SELECT statement
Dim ps As New PrinterSetup

Dim rpt As New TeamReport
If ps.PageSetupDialog Then
Dim g As Graphics
g = OpenPrinterDialog(ps)
If g <> Nil Then
If rpt.Run(teamRecordSet, ps) Then
If rpt.Document <> Nil Then
// Print the report
rpt.Document.Print(g)
End If
End If
End If
End If

Saving the Report

To save your report, you have a couple options. If you are using MacOS, you can let the user take advantage of its ability to print directly to a PDF file. The user can use the MacOS print dialog to select to save the report to a PDF file rather than sending it to the printer.

Your other choice is to save the Pictures to disk rather than drawing them on screen as this code shows:

Dim teamData As New TeamDataSet
Dim ps As New PrinterSetup
Dim rpt As New TeamReport
If rpt.Run(teamData, ps) Then
If rpt.Document <> Nil Then
Dim saveFolder As FolderItem
saveFolder = SelectFolder
If saveFolder <> Nil Then
Dim saveFile As FolderItem
For i As Integer = 1 To rpt.Document.PageCount
saveFile = saveFolder.Child("TeamReport" + Str(i) + ".png")
rpt.Document.Page(i).Save(saveFile, Picture.SaveAsPNG)
Next
End If
End If
End If

Example Projects

Examples/Printing and Reporting/Reporting/GasReport/GasReport
Examples/Printing and Reporting/Reporting/ListBoxReport
Examples/Printing and Reporting/Reporting/Orders1/ListOfOrders
Examples/Printing and Reporting/Reporting/Orders2/BreakingListOfOrders
Examples/Printing and Reporting/Reporting/Products/List Of Products Preview
Examples/Printing and Reporting/Reporting/Products/List Of Products
