Web apps have a graphical user interface that runs inside a web browser and a companion server app that runs on (or as) a web server. You can also create web apps that function as we services by utilizing the HandleSpecialURL and HandleURL events on the App object.

Web Project Overview

When you create a web project, you get the following project items added automatically:

  • App: The App object allows you to specify some initial app settings, including
  • Session: Each user that connects to the web app gets its own Session instance. Use the Session object to save information that is specific to the user/session and to access session-specific information.
  • WebPage1: This is the main window layout where you place your controls. You can add your own web pages as well.

App Object

For a web project, the App object is a subclass of WebApplication. You use it to specify the default web page that opens when your app starts and a session connects, default messages, HTMLHeader and the app icon (in various sizes).

Event Handlers

The WebApplication class for a web app has event handlers. They are:

  • Close: The close event is called when the app quits.
  • HandleURL: This event is called when the web app is accessed using a URL it cannot resolve.
  • HandleSpecialURL: This event is called when the web app is accessed using the special URL, /special/value. In the Request parameter you can get information about the URL and return information back. This can be used to implement web services in your web app. The URL “/api/value” is also supported and will result in this event handler being called.
  • Open: This event handler is called when your app first starts.
  • UnhandledException: Called when a runtime error occurs that is not caught by your code. This event gives you a “last chance” to catch runtime errors before they cause your app to quit.

Properties

  • DefaultWebPage: This is the web page that is displayed automatically when the app starts.
  • LaunchMessage: On the app loading screen, a progress bar, the app icon and the launch message all appear while the app is being loaded.
  • DisconnectMessage: This message appears when the client has lost its connection to the server.
  • HTMLHeader: Can be used to add static HTML code to each page.
  • Icon: This opens the Icon Editor and lets you specify the various size icons that are used by the app. These icons are used by the loading screen and as a the browser favicon.

Design Considerations

Keep these things in mind when designing and developing your web apps.

Making Desktop-Style Web Apps

Client/Server

All web apps uses a client/server design. This means that a web app has two parts: the client user interface and the app that runs on the server. The client is the part that the user interacts with. For a web app, this is the user interface that runs in a web browser. Web apps support recent versions of modern web browsers such as Safari, Chrome, Firefox and Internet Explorer.

The app is where your Xojo code runs and it is typically run on a server. The client and the web app components can reside on the same computer, but they are usually different computers: the user’s computer for the web browser/user interface and a server that is running the app.

Latency

When you are testing your web apps locally, both the client (web browser) and server (app) are running on your computer. This means that communication between them is quick. But when you deploy an app to a web server, there can be a longer delay as the web browser has to communicate across the Internet to the app on the server. This delay is called latency and has a lot of factors, including the speed of the user’s Internet connection, general Internet congestion and the responsiveness of the server.

It is important when designing your app to keep latency in mind, by not designing your UI as if it expects fast (desktop-like) responsiveness. Multiple Users and Sessions

A web app typically has multiple users connected to it at one time. This is handled for you using a concept called Sessions. The Session object is a subclass of WebSession and is automatically added to all web projects. Each user that connects to your web app gets its own Session subclass that you can access using the Session global function.

Use the Session object to store information that is global to the connected session, but not global to the overall app.

Cookies

Cookies are a browser feature that allows the web browser to save Session-specific data. Web apps have built-in support for Cookies as methods of the WebSession class.

Cookies are a standard way for web browsers to retain information pertaining to a session. For example, if your web app has users log in using a UserID, you could save the UserID as a cookie. The next time they open the web app, you can ask the web browser for the cookie and if it is available, pre-fill the UserID name for them.

This is how you set a cookie value:

Session.Cookies.Set("UserName", "BobRoberts")

And this is how you retrieve a cookie value:

Var userName As String
userName = Session.Cookies.Value("UserName")

Hash Tags

Hash tags are a way for you to identify different areas of the web app. Web apps always show the same browser URL, even as you navigate to different web pages. You can use the Hash Tag as a way to identify different pages (or data) so that the user can return directly to it later.

Hash tags are written using the “#” character like this:

http://www.mywebsite.com/#details
http://www.mywebsite.com:8080/#settings

The WebSession.HashTagChanged event is called when the hash tag is changed by the user. In this event, you can get the new value and choose to navigate to a different page or display different data. For example, you can send the hash tag #50 to display row 50 in a ListBox with code like this:

Var row As Integer
row = HashTag.Val - 1

Var dataList As WebListBox = MainPage.DataList
If row >= 0 And row <= dataList.RowCount Then
dataList.ListIndex = row
dataList.Selected(row) = True
End If

This is an example of a URL for the above code:

http://127.0.0.1:8080/#50

More simply, this code in the HashTagChanged event displays a settings page when the URL "http://127.0.0.1:8080/#settings" is used:

If HashTag = "settings" Then
SettingsPage.Show
End If

Build Settings

The Build Settings section of the Navigator contains the build-specific settings for your app in general and for specific OS targets. You can check the box next to each target in order to build an app for that target. Web targets are: Windows, macOS and Linux.

Shared

The Inspector for Shared settings contains these properties:

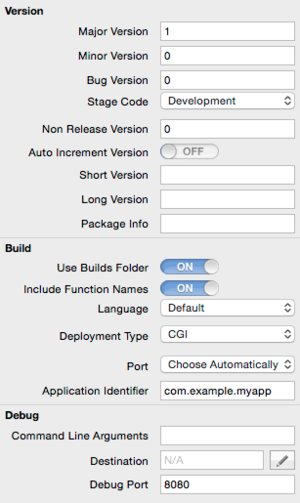

Web Shared Build Settings
  • Major Version: The Major version for your app. Version numbers are usually written as 1.2.3.4, where “1” is the major version.
  • Minor Version: The Minor version for your app. Version numbers are usually written as 1.2.3.4, where “2” is the minor version.
  • Bug Version: The Bug version for your app. Version numbers are usually written as 1.2.3.4, where “3” is the bug version.
  • Stage Code: Used to indicate the type of appyou are building (Development, Alpha, Beta, Final).
  • Non Release Version: The Non Release (build) version for your app. Version numbers are usually written as 1.2.3.4, where “4” is the non release version.
  • Auto Increment Version Info: When ON, the Non Release Version increases by one each time you do a Build.
  • Short Version: A short text description for your app. Usually this contains just the version number (such as 1.2.3.4) and is displayed by some operating systems in Get Info or Property windows for the app.
  • Long Version: A longer text description for your app. Usually this contains the app name, copyright, version and other information. This is displayed by some operating systems in Get Info or Property windows for the app.
  • Package Info: A text description for your app that may be displayed by some operating systems in Get Info or Property windows for the app.
  • Use Builds Folder: When ON, builds are placed in a separate folder alongside the project file. Each platform (macOS, Windows, Linux) also gets its own subfolder within this builds folder.
  • Include Function Names: When ON, the actual names of your function calls are included in the built app. This is useful for debugging purposes and for getting stack traces.
  • Language: Allows you to specify the language to use to resolve dynamic constants.
  • Optimization: Used for 64-bit builds and 32-bit ARM builds (those that use the LLVM compiler). There are these choices:
    • Default: Optimized for fast build times.
    • Moderate: A balance between build times and math-related code execution time.
    • Aggressive: Longer build times, but code is more optimized for faster math-related code execution time.
  • Deployment Type: Web app can be deployed as either CGI or stand-alone apps.
  • Port: Select a specific port to use to connect to the web app or let the web app choose the port automatically. For CGI apps you should leave this at "Choose Automatically".
  • Application Identifier: Required for CGI app, this is an unique identifier for the web app. If you deploy multiple web apps on the same server, they must all have unique Application Identifiers.
  • Supports Hi-DPI: Set to ON to indicate that this app should be built with support for hi resolution dots per inch displays (HiDPI).
  • Command Line Arguments: These are the command-line arguments that are passed to your app when running it in Debug mode.
  • Destination: Specifies the path where the app is located when you run it in Debug mode. If not specified, then the app is placed alongside your project file.
  • Debug Port: This is the port that is used when running your web app in Debug mode. Note: If you ever have difficulty debugging your web app (such as it not starting), make sure the debug port is not in use by another app on the computer. When in doubt, change the Debug Port to another value.

Xojo Cloud

Xojo Cloud Build Settings

The Xojo Cloud section is used to deploy your web app to a Xojo Cloud server.

  • Application Name: The name of your web app. Your web app will be deployed into a folder with this name, which will be of the URL to the app.
  • Server: The Xojo Cloud server to which to deploy. You will need to have purchased a Xojo Cloud server and be logged in to your account in Xojo in order to see your servers.
  • Xojo Cloud Server Statistics
    Statistics: Click the Show button to display a window of statistics for the entire server and individual apps that are installed on it.

macOS

The macOS section allows you to specify settings for the macOS web app.

  • Mac App Name: The actual file name for the macOS app.
  • Architecture: The CPU architecture for the app. Choices are x86 32-bit and x86 64-bit. You cannot build a 64-bit macOS app from Windows.
  • Bundle Identifier: This is the same as the Application Identifier.

Windows

The Windows section contains build settings for your Windows web apps.

  • Windows App Name: The actual file name for the Windows app.
  • Company Name: On Windows 7 and later, the “Company Name” appears in the Copyright section of the app properties in the Details tab.
  • Product Name: The name of the product as installed in the Windows Start ↠ All Programs menu. This also appears in “Product name” on the app properties Details tab.
  • Internal Name: This is useful when your product has a different internal name than its external name. This is not shown on the app properties Details tab.
  • File Description: [TBD]
  • Include Windows Runtime DLLs: Copies the Universal Runtime DLLs beside your app executable. For more information, refer to Windows Universal Runtime.
  • Architecture: The CPU architecture for the app. Choices are x86 32-bit and x86 64-bit. Currently only 32-bit apps can be run in debug mode from Xojo. You have to Build to create a 64-bit app.

Linux

The Linux section contains build settings for your Linux web apps.

  • Linux App Name: The actual file name for the Linux app.
  • Architecture: The CPU architecture for the app. Choices are ARM 32-bit, x86 32-bit and x86 64-bit.

Linux ARM 32-bit apps run on the Raspberry Pi and other similar single-board computers. The Raspberry Pi is not set up to easily run the Apache web server that is needed for CGI web apps, so you should only run standalone web apps on Raspberry Pi.

Deployment

The easiest way to deploy your Xojo Web apps is to use Xojo Cloud. With Xojo Cloud, you can deploy your web app in a single step by clicking the Deploy button on the main toolbar. Xojo Cloud also adds many additional features which are covered here:

Should you prefer to deploy to your own servers, you can also do so as either a standalone app or a CGI app that works in conjunction with an existing web server (usually Apache). You create a build by clicking the Build button on the main toolbar or choosing& Project ↠ Build from the menu.

For more information about web app deployment:
