UserGuide:Desktop Apps

Desktop Project Overview

When you create a desktop project, you get the following project items added automatically:

App: The App object allows you to specify some initial app settings, including the default window, default menu bar and app icons.
Window1: This is the main window layout where you place your controls.
MainMenuBar: This is the main menu bar. Most apps only have a single menu bar.

App Object

For a desktop project, the App object is a subclass of Application. You use it to specify the default window that opens when your app starts, the default menu bar that is used by the app and the app icon (in various sizes).

Desktop Project Overview

The DefaultWindow property shows a list of all the Windows in the project. Select the one you want to automatically appear when the app starts. You can also set it to None so you can then show a specific window yourself from one of the App event handlers.

Event Handlers

The App object has several event handlers:

Open: This event handler is called when your app first starts, either by running the app directly (in debug mode) or by running a built app.
Close: The closing event is called when the user quits the app.
NewDocument: This event is called when the built app is run without supplying a document.
OpenDocument: This event is called when one of the app's documents is double-clicked from the desktop causing the app to start. It is also called if you drop a document on the app.
EnableMenuItems: This event is called when the user clicks on a menu in the menu bar but before any menu items are displayed. This event handler executes after the EnableMenuItems event handler of any classes with instances in the frontmost window and after the window’s EnableMenuItems event handler. This is the event handler that should be used to enable menu items that should be enabled regardless of whether there is a window open or not (this possibility exists on macOS apps). Note that if a menu item should always be enabled, you should use its AutoEnable property instead of a EnableMenuItems event handler.
HandleAppleEvent: Executes when an AppleEvent is received by the application.
Activate: The app is being activated. This occurs when the app is opening and when it is being brought to the front.
Deactivate: The app is being deactivated. This occurs when another app or a desktop window is being brought to the front or when the app quits.
UnhandledException: Called when a runtime error occurs that is not caught by your code. This event gives you a last chance to catch runtime errors before they cause your app to quit.

Properties

DefaultWindow: This is the window that is opened automatically when the app starts. You can also set this to None.
MenuBar: This is the primary menu bar for the app. It is used as the default menu bar for newly created windows. This property is accessible by the App function (see next topic). You can also set it to None so you can then show a specific window yourself from one of the App event handlers.
Icon: Click the icon image to display the App Icon Editor where you can specify the various sizes of icons used by the OS to display the app.

Build Settings

The Build Settings section of the Navigator contains the build-specific settings for your app in general and for specific OS targets. You can check the box next to each target in order to build an app for that target. Desktop targets are: Windows, macOS and Linux.

Note: Properties in this section that are accessible by the App function are in italics.

Shared

The Inspector for Shared settings contains these properties.

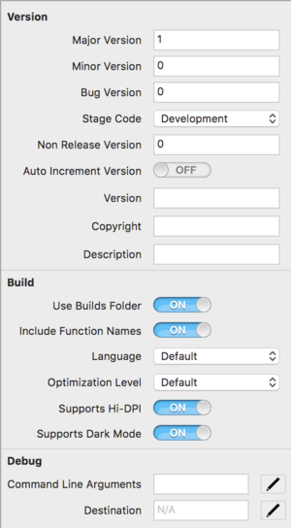

Desktop App Shared Build Settings

Version

Major Version (MajorVersion): The Major version for your app. Version numbers are usually written as 1.2.3.4, where “1” is the major version.
Minor Version (MinorVersion): The Minor version for your app. Version numbers are usually written as 1.2.3.4, where “2” is the minor version.
Bug Version (BugVersion): The Bug version for your app. Version numbers are usually written as 1.2.3.4, where “3” is the bug version.
Stage Code (StageCode): Used to indicate the type of app you are building (Development, Alpha, Beta, Final).
Non Release Version (NonReleaseVersion): The Non Release (build) version for your app. Version numbers are usually written as 1.2.3.4, where “4” is the non release version.
Auto Increment Version: When ON, the Non Release Version is increased by one each time you do a Build (but not when you Run).
Version (Version): A short text description for the app. Usually this contains just the version number (such as 1.2.3.4) and is displayed by some operating systems in Get Info or Property windows for the app.
Copyright (Copyright): A longer text description for the app. Usually this contains the app name, copyright, version and other information. This is displayed by some operating systems in Get Info or Property windows for the app.
Description (Description): A text description for the app that may be displayed by some operating systems in Get Info or Property windows for the app.

Build

Use Builds Folder: When ON, a separate folder is placed alongside the project file. Each platform that is built (macOS, Windows, Linux) also gets its own subfolder within this build folder.
Include Function Names: When ON, the actual names of your function calls are embedded in the built app. This is useful for debugging purposes and for getting stack traces.
Language: The language to used to resolve dynamic constants. Use Localization preferences to change the order of the languages.
Optimization Level (OptimizationLevel): Used for 64-bit builds and 32-bit ARM builds/debug runs (those that use the LLVM compiler). Choices are:
- Default (0): Fastest build times. This setting is recommended for most apps and should also be used when debugging.
- Moderate (6): Math-related code runs faster, but builds take longer.
- Aggressive (4): Math-related code is highly optimized for performance, but builds may take a significant amount of time.
Supports Hi-DPI: Set to ON to indicate that this app should be built with support for hi resolution dots per inch displays (HiDPI). Use the AppSupportsHiDPI constant to check this in your code.
Supports Dark Mode: Set to ON to indicate that this app works with Dark Mode on macOS Mojave (and later). Use the AppSupportsDarkMode constant and the IsDarkMode method to check this in your code.

Debug

Command Line Arguments: These are the command-line arguments that are passed to your app when you run it in Debug mode.
Destination: Specifies the path where the app is located when you run it in Debug mode. If not specified, then the app is placed alongside your project file (or in a folder alongside the project file on Windows and Linux).

Usage

You can access some of these properties in your code by referencing the name in italics as a property of the App object. For example, this gets the Major Version:

Dim majorVer As String = App.MajorVersion

You can also access/change some of these properties in an IDE Script. This IDE Script code changes the Optimization Level to Moderate:

PropertyValue("App.OptimizationLevel") = "6"

macOS

The macOS section contains settings used when building the macOS app.

Mac Build Settings

Mac App Name: The actual file name for your macOS app. If not specified, the ".app" suffix is automatically added when the app is built.
File Types: Opens the Accept File Types dialog used to specify the acceptable file types that the app supports. For each file type, you can specify its role as None, Viewer, Editor or Shell.
- None: Your app cannot handle the file type.
- Viewer: Your app can open and read the file type, but cannot save it.
- Editor: Your app can open, read, edit and write using the file type. This is what you should normally choose.
- Shell: Not documented by Apple.
Architecture: The CPU architecture for the app. Choices are x86 32-bit and x86 64-bit. You cannot build a 64-bit macOS app from Windows or Linux.
Bundle Identifier: The bundle identifier is required by macOS and is used as a unique descriptor for your app. It is usually specified as a reverse domain name, such as com.xojo.myapp. This is added to the CFBundleIdentifier section of the app's plist.

Windows

The Windows section contains settings used when building the Windows app.

Windows Build Settings

Windows App Name: The actual file name for the Windows app. If not specified, the ".exe" suffix is automatically added when the app is built.
Company Name: On Windows 7 and later, the "Company Name" appears in the Copyright section of the File Explorer app properties in the Details tab. You can change this in IDE Script with the propertyvalue of "CompanyName".
Product Name: The name of the product as installed in the Windows Start ↠ All Programs menu. This also appears in "Product name" on the File Explorer app properties Details tab. You can change this in IDE Script with the propertyvalue of "ProductName".
Internal Name: This is useful when your product has a different internal name than its external name. This is not shown on the File Explorer app properties Details tab. You can change this in IDE Script with the propertyvalue of "Internalname".
File Description: This description is displayed in the File Exporer app properties in the Description area of the General tab and on the Details tab.
MDI: When ON, the app's windows will be enclosed in the "parent" MDI window. MDI stands for Multiple Document Interface. Although still supported by Windows, it is not commonly used.
MDI Caption: If MDI is ON, you can enter the caption that appears in the title bar of the MDI window.
Architecture: The CPU architecture for the app. Choices are x86 32-bit and x86 64-bit. Currently only 32-bit apps can be run in debug mode from Xojo. You have to Build to create a Windows 64-bit app.

Windows Build Settings

These settings are available on the "Advanced" (gear) tab of the Inspector:

Windows Advanced Build Settings

Include Runtime DLLs: Copies the Universal Runtime DLLs beside your app executable. For more information, refer to Windows Universal Runtime.
The following two settings are available when Architecture is "x86 64-bit":
Supported Versions: These settings indicated the supported Windows OS for the app. Available when Architecture is "x86 64-bit". This setting indicates that the app has supported behavior for the OS. For more information, refer to the Microsoft Application Manifests information for supportedOS.
Security: This setting indicates the security level that the app runs as. Choices are: "User" (default), "Highest Available", and "Administrator". This would be used if your app needs to run at a higher security level than a regular user, for example if it needed to modify the firewall or install a service. Available when Architecture is "x86 64-bit".

Linux

The Linux section contains settings used when building the Linux app.

Linux Build Settings

Linux App Name: The actual file name for the Linux app.
Architecture: The CPU architecture for the app. Choices are ARM 32-bit, x86 32-bit and x86 64-bit.

Linux ARM 32-bit apps run on the Raspberry Pi and other similar single-board computers.

This Computer

The This Computer section shows you the appropriate target settings (macOS, Windows or Linux) for the OS you are currently using. For example, if you are running Xojo on macOS, then This Computer shows the macOS Build Settings.

Building and Deployment

To create a stand-alone app for deployment, you create a build by clicking the Build button on the main toolbar or choosing Project ↠ Build from the menu. This creates apps for each of the OS platforms you selected, with separate folders for each (when Use Build Folders is ON).

You can also use IDE Scripting to create builds.

Build Folder Names

OS	Architecture	Folder Name
macOS	x86 32-bit	Mac OS X (Cocoa Intel)
macOS	x86 64-bit	OS X 64 bit
Windows	x86 32-bit	Windows
Windows	x86 64-bit	Windows 64 bit
Linux	x86 32-bit	Linux
Linux	x86 64-bit	Linux 64 bit
Linux	ARM 32-bit	Linux ARM

Desktop apps are deployed by installing them on a computer and running them on the computer. Once you have created your builds, you'll need to test them on the target OS and possibly package them into a format for distribution (such as an installer).

Always test your apps on the specific target platform!
